Product Descripiton
The production line improves the production efficiency by improving the production process. Optimize the raw material composite process, the use of advanced hot pressing technology, so that each layer of materials tight and uniform, improve product quality at the same time, speed up production. In the molding process, the mold is finely polished and optimized to make the diaper molding more accurate and fast, and reduce the generation of defective products. At the same time, the production rhythm is reasonably arranged, and the connection between the various processes is smooth, and the production efficiency is increased by 30%.
This production line in the product quality and equipment maintenance of the two-pronged. In terms of quality control, the establishment of a quality traceability system, each piece of diaper has a unique number, from raw material procurement to finished product sales, the information of each link can be traced, once quality problems can be quickly located and solved. In terms of equipment maintenance, establish detailed files for each equipment, record equipment usage, maintenance records, etc. According to the running time and actual conditions of the equipment, develop a personalized maintenance plan, regular equipment maintenance, extend the service life of the equipment, reduce the operating cost of the enterprise.
Product Info
| Product size | according to customers request |
| Product structure | Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisition distribution layer) non-woven,PE film,leg cuff hydrophobic non-woven,side small "s " shaped waist sticker,online molding elastic waistline |
| Control system | PLC programming control system,HMI Operating ,LED digital display graphic digitization control |
| Drive system | Full Servo Drive(Easy to change size), digital size change,ensure run sysynchronized at full position cutting to ensure pattern is in phase |
| Tension system | tension unwinding equipped, constant control with buffer system, automatic Web guide system. The unwinding system ensure materials stable working at full speed
splice,minimize the impact on materials tension force, to reduce downtimes. |
| Safety system | It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer. |
| Packaging system | according to customer requirements with palletizer machine (double push double exit ) adjustable |
| Materials corrective system | Adopt international famous brand deviation correction system |
| Power | 380V, 50HZ three phase five wire |
| Machine Capacity | 225KW (Excluding glue machine and air compressor) |
| Bleed pressure | 0.6-0.8Mpa (Air compressor needs to be prepared by customers) |
| Machine weight | 70 Tons approximately |

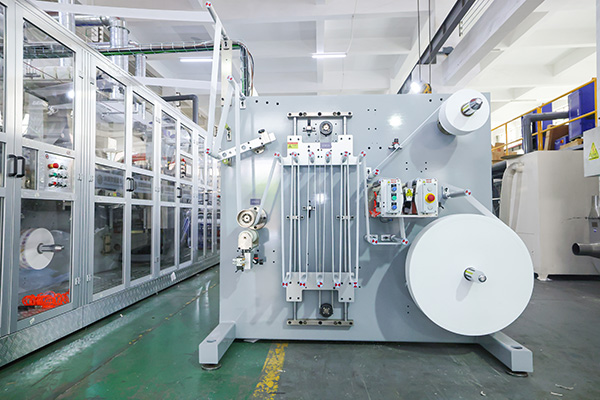

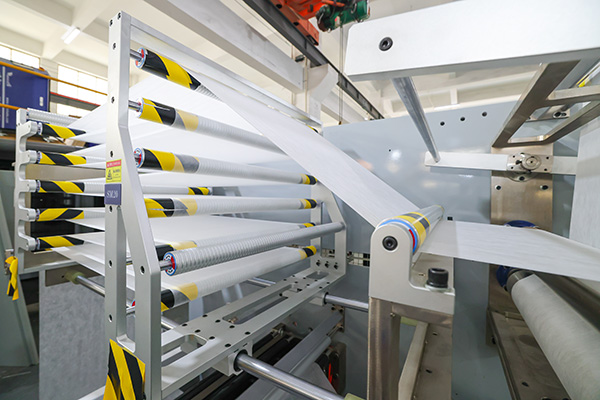

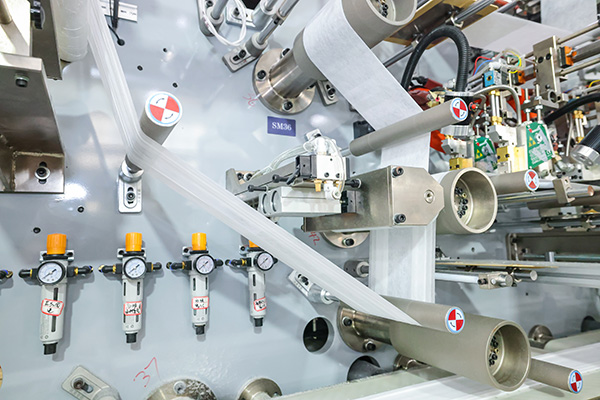

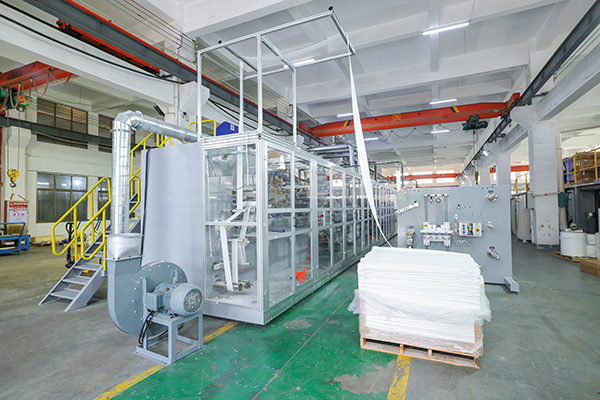

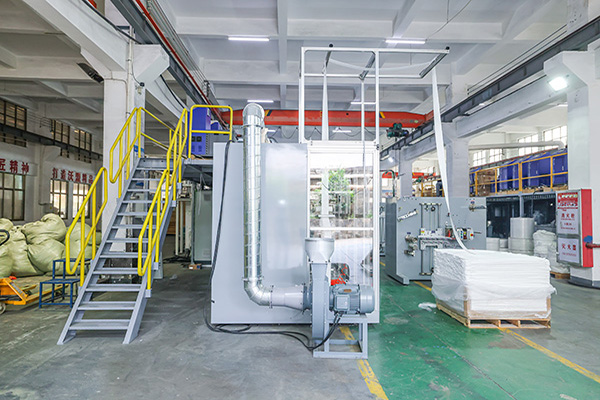

Detailed Photos
Company Profile
Quanzhou Womeng Intelligent Equipment Co., Ltd. always provides customers with good products and technical support. Quanzhou Womeng Intelligent Equipment Co., Ltd. is located in Quanzhou, the cultural capital of East Asia and the starting point of the Maritime Silk Road. Founded in 2016, it is an enterprise focusing on the R&D, manufacturing and sales of paper equipment. The products cover sanitary napkin equipment, diaper equipment, pant equipment, mattress equipment, pad equipment, etc.
The company has excellent products, professional sales and technical teams, complete supporting facilities, and according to different market product specifications, each equipment is customized according to the actual needs of users, and has rich experience and technical capacity in the design and production of equipment.
Adhering to the business philosophy of honesty, cooperation and win-win, the company wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the greatest extent. Serving customers and achieving customers, "pioneering and innovating, pursuing excellence" is the constant pursuit of Womeng Equipment. We sincerely look forward to cooperating with new and old customers to create the future!
Packaging and shipping
Exhibitions and partners
Why Choose a Chinese Baby Diaper Making Machine?
There are a few key reasons why our machines stand out:
- Efficiency: High-speed production, capable of producing hundreds of diapers per minute.
- Quality Control: Automated processes ensure consistent quality, minimizing human error.
- Cost-Effective: We offer machines at competitive prices, plus OEM & ODM services that allow customization to meet your specific needs.
Our machinery can be tailored to various types of diapers, whether you’re producing standard nappies or pull-up diapers. You can trust that our equipment will make the most out of your raw materials, delivering top-tier products every time.
Advantages of Choosing Our Diapers Machinery
Our diapers machinery stands out for several reasons:
- Efficiency and Speed: With high production speeds and minimal downtime, our machinery is built for rapid output, allowing you to meet large orders with ease.
- Advanced Technology: Integrated with servo drive systems and PLC controls, our machinery ensures every diaper is accurately formed and finished.
- Customization and Flexibility: As a reputable manufacturer, we offer tailored solutions that fit your business needs. From size specifications to branding elements, our OEM services ensure the final product aligns with your brand identity.
The choice of an efficient diaper manufacturing machine directly impacts product quality and customer satisfaction. Our adult diaper production line not only allows for large-scale production but also adheres to strict quality control protocols. The servo-driven technology minimizes material waste, ensuring that every inch of raw material is utilized effectively, which reduces production costs over time.
Reliable Supplier with OEM & ODM Capabilities
As an experienced diaper production machine manufacturer, we are committed to supporting our clients with tailored solutions. Our team collaborates closely with customers, from understanding initial requirements to providing technical support post-installation. We welcome local distributors, wholesalers, and suppliers to reach out for partnerships, and we are fully equipped to meet the diverse needs of clients worldwide.
For those interested in exploring different machine types, we also offer a range of options, including semi-servo systems for pull-up diapers, training pants, and other variations. Our equipment is designed with versatility in mind, enabling customers to adapt to changing market demands without investing in entirely new machinery.
Certifications
FAQ
Q1.When can I get the price?
A:We usually quote within 24 hours after we get your inquiry.If you are urgent to get the price,please tell us by Email so that we will take your inquiry as the first priority.
Q2.How can I get a sample to check your quality?
A:After price confirmation,we sincerely invite you to our factory to check our operation and production.
Q3.Can you do the machine's appearance design for us?
A:Of course.We have a professional team with rich experience in machine's appearance design and manufacturing.Machine structure design is according to the products that you want to produce.
Q4.What's your after sale service?
A:When machine is delivered from our factory,we'll apply the visa for our engineers to your country.As soon as the machine arrives in your factory,we'll assign them to go immediately.You can also assign your staff to our factory to learn.
Q5.Could you also supply raw materials?
A:Yes,surely we can.We have long term cooperation with many raw materials suppliers.They can provide us good quality and good price.This is in our service chain
